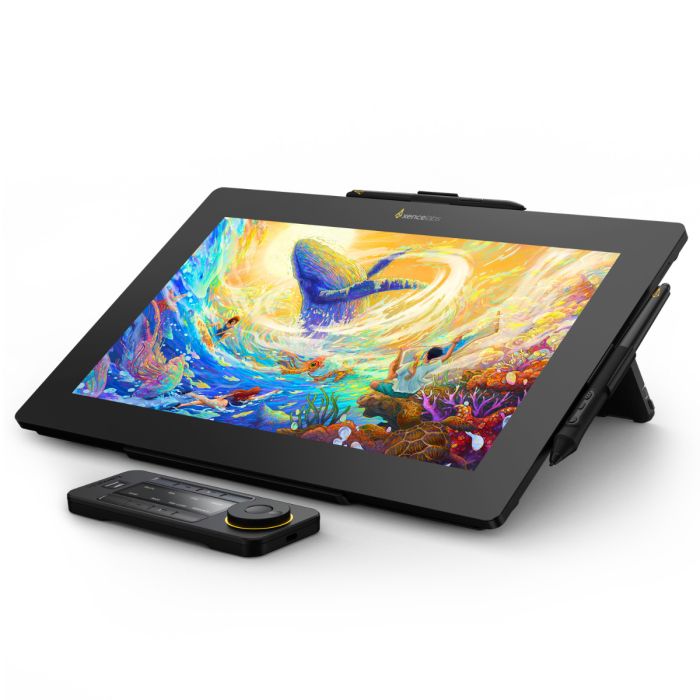

Xencelabs Pen Display 16 Essentials

The Pen Display 16 Essentials is designed for artists who need the basics to draw and be quickly mobile. It is designed to work with recent laptops that have USB-C alt-mode and can provide 15W of power.

For compatibility with HDMI and DisplayPort plus many other productivity features including enhanced brightness, please consider the more fully featured Pen Display 16.

Key Features

* 4K OLED Display with etched surface provides an edge-to-edge seamless, natural drawing experience.

* Lightweight & slim for easy transport. Connects via a single USB-C cable.

* Responsive, adjustable Pen pressure curve to match drawing style.

* 3 Button Pen v2 and Thin Pen v2 cater to user preferences.

* Exceptional glare reduction.

* Up to 1.07 billion colors and choice of five factory-calibrated color spaces - Adobe RGB: 98%, P3-D65: 98%, sRGB: 99%, REC 709: 99% & REC: 2020 82%.

* Intuitive driver includes "Virtual Tablet Mode™", enabling pen control of other attached displays.

* Protective carrying case holds Pen Display 16, all included accessories and most laptops.

Compatible Software:

PC: Windows® 7 or later (latest service pack/build)

Mac: OS X 10.12 or later (latest update)

Linux - Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above

Compatible Hardware:

USB-C port with DisplayPort Alternate Mode (UHD),

or DisplayPort (UHD) and USB-C/USB-A,

or HDMI 2.1 (UHD) and USB-C/USB-A

Internet access for driver download.

What's in the box

1. Pen Display 16
2. Pen Case
3. 3 Button Pen v2(XMCPH35)
4. Thin Pen v2(XMCPH36)
5. Thin Pen Clip
6. 3 Button Pen Clip
7. Nibs (6 Standard, 4 Felt)
8. Nib Extractor
9. Sticker
10. Cleaning Cloth
11. Glove (M)
12. USB-C to USB-C Cable
13. Carrying Case

Technical Specifications

Pen Display 16 Essentials Specifications

Model Number =LPH1612U-A
Product Color = Black
Warranty = 2 years
Security = Kensington NanoSaver® Slot (Lock Port) - Lock not included
Product Weight = 2.67 lbs (1.21 kg)
Product Dimensions = 16.1 x 10.2 x 0.47 in (410 x 259.4 x 12mm)
Screen Size (measured diagonally) = 15.6 in (39.6 cm)
Active Area = 13.55 x 7.6 in (344.2 x 193.6 mm)
Display Resolution = 3840 x 2160 pixels
Displayable Colors (maximum) = 1.07 billion colors
Color Gamut Coverage Ratio (typ) = 98% Adobe RGB (CIE1931); 98% P3-D65; 99% SRGB; REC 709; REC2020
Surface = Edge-to-edge tempered glass with Super-AG Etching™
Brightness = 170cd/m2 , with one cable
Display Technology = OLED 4K
Contrast Ratio = 100000:1 (typ)
Response Time =1ms
Pen = 3 Button Pen + Eraser v2 & Thin Pen + Eraser v2
Pen Technology = EMR
Pen Pressure Levels = 8192 levels (Finely Tuned Pressure Curve)
Supported Pen Tilt Angle = 60 degrees
Pen Resolution = 5080 lpi
Pen Type = Pressure-sensitive, cordless, battery-free
Replacement Nibs = 10 Nibs v2 (6 standard, 4 felt)

Warranty

2 Years
